Gas meters
Diaphragm prepaid gas meter
A diaphragm gas meter with a mechanical index, credit display and keypad. The photographed unit is a G1.6 configuration. Selection for other capacities or gas types requires a project-specific technical review.
Request a quotePhotographs show reference configurations. Confirm the final specification in your quotation.
Reference specifications
| Metering principle | Diaphragm |
|---|---|
| Pictured capacity | G1.6 |
| Maximum flow, pictured unit | 2.5 m³/h |
| Accuracy, pictured unit | Class 1.5 |
| User interface | Keypad, LCD and mechanical index |
| Other capacity enquiries | G2.5 / G4 configurations: request confirmation |
These are reference specifications, not a project compliance declaration. Confirm the exact model, firmware, options and supporting documents in your quotation.
Typical enquiries
- Residential piped-gas projects
- Managed property gas metering
- Small commercial gas connections
Technical documents
Request the configuration-specific datasheet, drawings and applicable test evidence.
Request a technical packConfirm your configuration
- Gas composition, working pressure, flow range and temperature
- Inlet/outlet size, centre distance and installation orientation
- Required safety approvals and destination metrology rules
- Valve fail-safe behaviour, battery policy and recharge integration

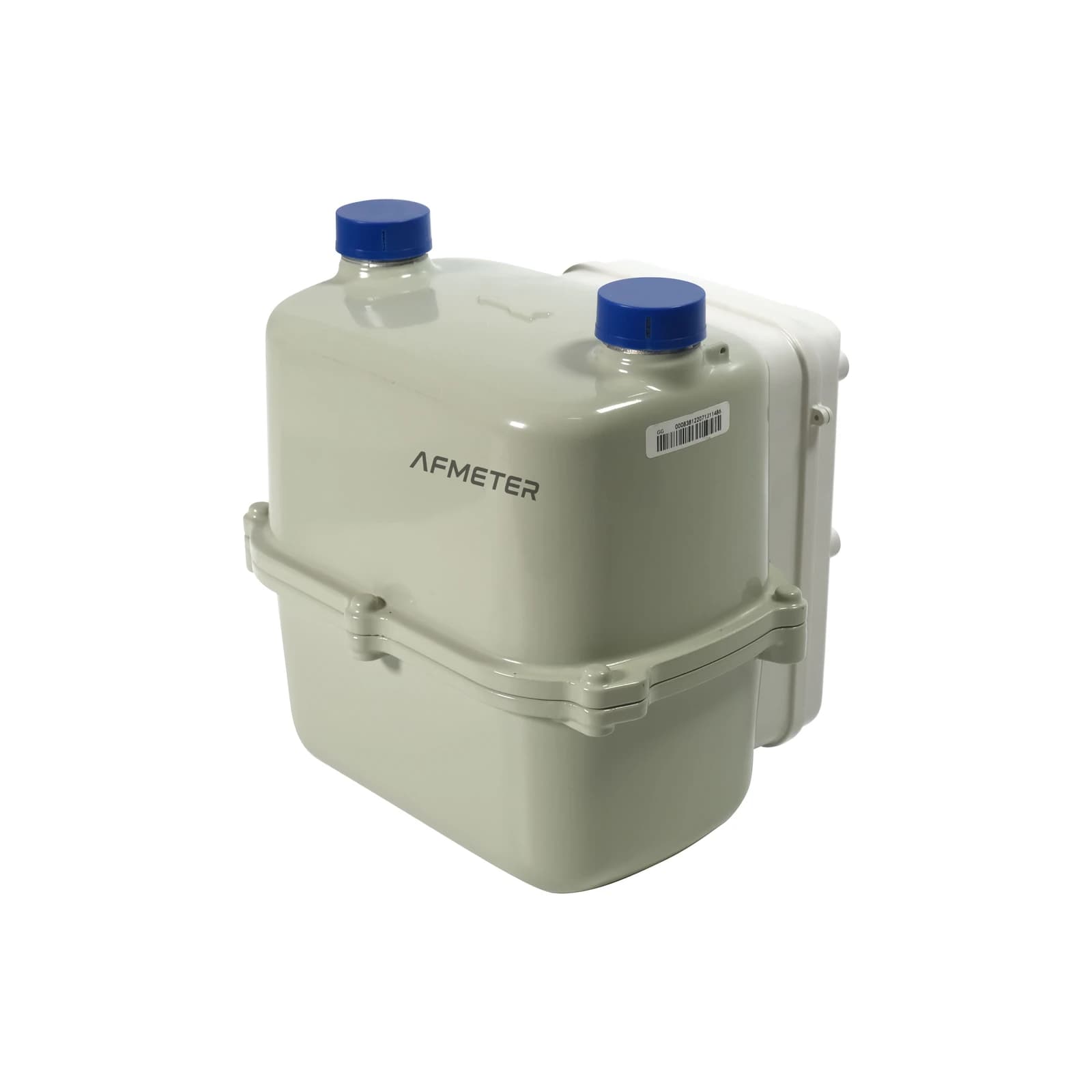

Product views
