Gas Meters
STS Prepaid Gas Meters
Diaphragm Gas Meters with Secure Token-Based Prepayment
Product Overview

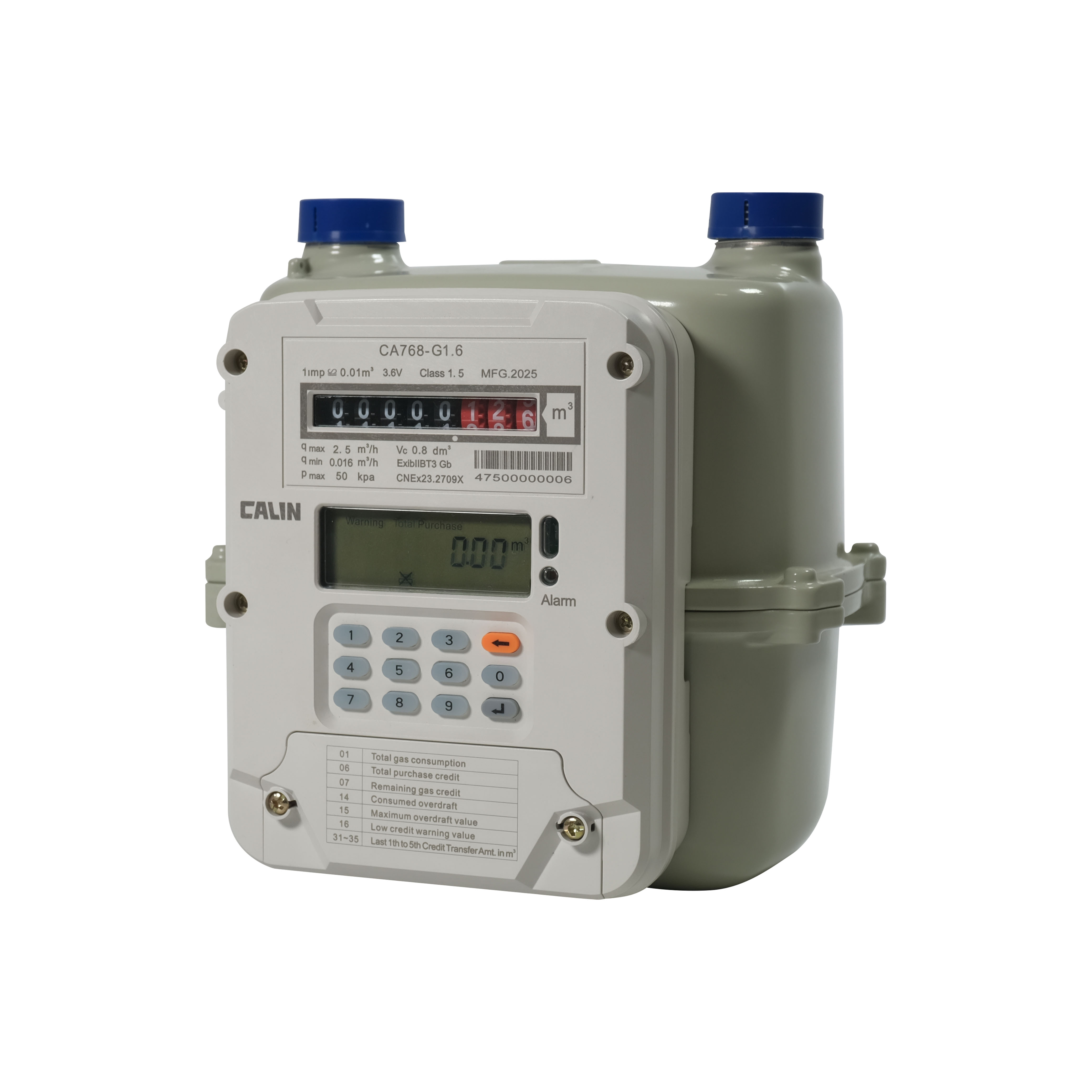

STS Keypad Prepaid Diaphragm Gas Meter
The CG series are STS compliant prepaid diaphragm gas meters with temperature compensation, magnetic field protection, and CIU options.
✓
STS Compliant Prepayment
Secure 20-digit token-based vending system
✓
Temperature Compensation
Accurate volume measurement across varying temperatures
✓
Magnetic Field Protection
Anti-tampering with magnetic field detection
✓
CIU Optional
Remote display unit available
Technical Specifications
Product Details
| Parameter | Specification |
|---|---|
| Standard | STS, EN 1359, OIML R137 |
| Flow Rate | G1.6, G2.5, G4, G6 Available |
| Temperature Range | -10°C to +40°C Operation |
| Working Pressure | Max 50 kPa |
| Protection | Magnetic Field, Reverse Flow Detection |
| Communication | Keypad, CIU Optional |
Applications
Where to Use
🏠
Residential
Apartments, houses, and residential complexes with prepaid or postpaid options.
🏪
Commercial
Restaurants, hotels, and small businesses with gas consumption.
🏭
Industrial
Small industrial applications with larger gas meters for factories and plants.
